Model 701 Ratchet Clutch – 9/16″ Hex

Model 701 Ratchet Clutch – 9/16″ Hex

SKU: 70100-82959 Category:

Description

Lowell Corporation Mechanical Ratchet Clutches, Model 701

Low cost and weight with high performance
Lowell ratchet clutches are designed from standard bodies, gears, pawls, and springs. Forces are applied in an optimum manner between the solid steel gear and pawl so that loads are in compression rather than in shear. Gears are a low-carbon steel. Rugged tooth design as large contact area with pawl.

  • Fingertip control of motion: one way clockwise and one way counter-clockwise
  • Control lever can be connected to hydraulic, pneumatic, or electric actuators for remote shifting
  • Simple design ensures durability and reduces purchase and operating costs
  • High drive torque-to-weight ratio
  • Maximum driving efficiency
  • Minimal overrunning torque
  • Versatile mounting options
  • Standard gear openings available in hex, square, and bore and keyway (per ANSI/ASME B17.1)
  • Can be used individually or in combination
  • Open-sided for easy, minimal maintenance
  • Alignment is not critical
  • 100% Made in USA

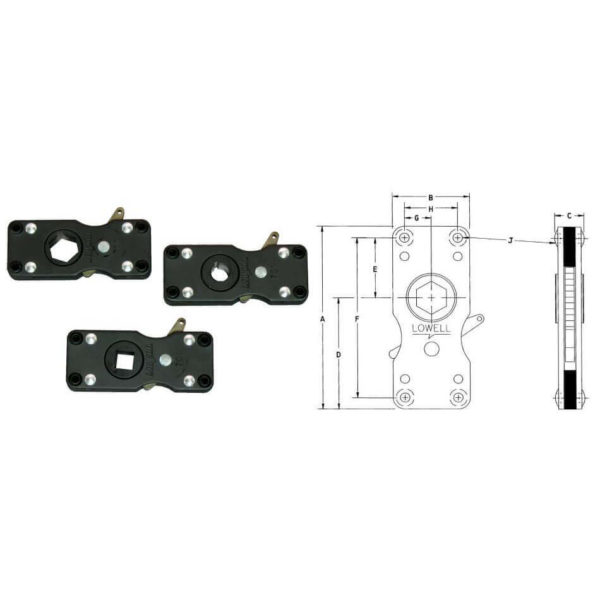

Additional information

Opening

9/16" Hex

A

4"

B

1-5/8"

C

21/32"

D

2-7/16"

E

1-21/64"

F

3-1/2"

G

9/16"

H

1-1/8"

J

3/16"

Gear Teeth

16

Max Torque

85 lb-ft

Overrunning Speed

250 rpm

Weight

3/4 lb

Model

701

Part Number

70959

Material

Fabricated Steel

Measurement System

Standard
